🔌 MCP Integration

X-AutoMate can be exposed via MCP (Model Context Protocol) and connected to any AI agent of your choice — Claude, ChatGPT, Cursor, your own custom agent, anything that speaks MCP.

This opens up unlimited possibilities to inject X-AutoMate into your agentic workflows — from autonomous test generation to data-quality copilots.

🚀 Why MCP?​

The MCP integration gives your agent first-class access to X-AutoMate's core capabilities:

  • 🧪 Run, create, and update tests from any agent
  • 🧼 Inspect DQ coverage and the latest run results
  • 📜 Read data contracts and their generated checks
  • 🔌 Browse connections, schemas, and metadata
  • 📚 Ask the X-AutoMate knowledge base for platform concepts

💡 If your agent can call tools, it can now drive X-AutoMate.

⚙️ Setup​

Getting connected is three steps:

  1. Generate an API key in X-AutoMate
  2. Add the MCP endpoint to your agent of choice:
    • URL: your.xautomate.host/main/mcp
    • Header: Authorization: Bearer <your_api_key>
  3. Confirm the tools appear in your agent — you're done

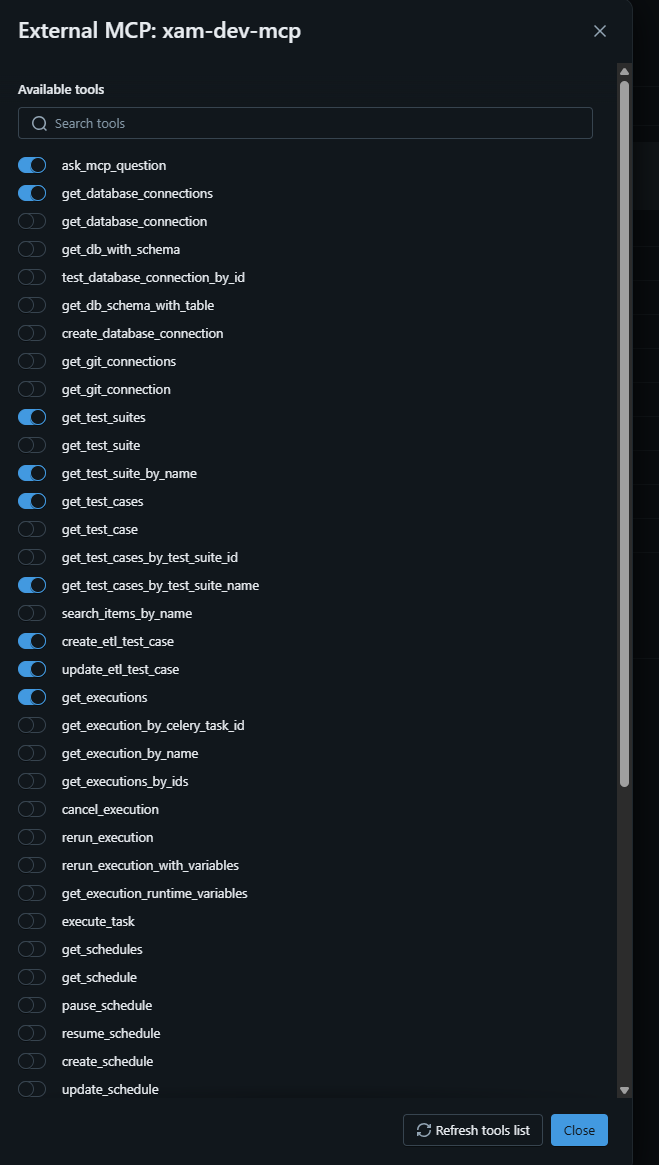

MCP Connected — Tools Selected

🛠 Available Tools​

Once connected, the following tool groups become available to your agent.

🔌 Database Connections & Metadata​

  • get_database_connections — list all DB connections
  • get_database_connection — details for a specific connection
  • create_database_connection — register a new DB connection
  • test_database_connection_by_id — verify a connection works
  • get_db_with_schema, get_db_schema_with_table — browse configs with schemas/tables
  • get_db_metadata, get_db_metadata_for_config — list metadata for a connection
  • lookup_db_metadata, get_dq_checks_by_data_contract_field — find metadata and related DQ checks
  • get_db_coverage_statistics — test-coverage stats for a DB

📜 Data Contracts​

  • get_data_contract_by_name, list_data_contracts — work with data contracts
  • get_data_contract_section — pull a specific section of a contract
  • get_dq_checks_by_data_contract_name — fetch DQ checks linked to a contract

🧪 Test Cases, Suites & Executions​

  • get_test_cases, get_test_cases_by_test_suite_id, get_test_cases_by_test_suite_name
  • get_test_case, get_test_suites, get_test_suite, get_test_suite_by_name
  • search_items_by_name — search test cases, suites, approaches, DQ checks, or keywords
  • create_etl_test_case, update_etl_test_case — manage ETL test cases with SQL keywords
  • get_executions, get_execution_by_name, get_execution_by_celery_task_id, get_executions_by_ids
  • cancel_execution, rerun_execution, rerun_execution_with_variables
  • get_execution_runtime_variables — fetch runtime variables for an execution
  • execute_task, execute_template — run test suites or templates

🧼 Data Quality​

  • get_dq_checks_latest_runs_details, get_dq_checks_latest_runs_overview
  • get_dq_test_cases — search DQ test cases with filters
  • create_dq_check — create a custom DQ check with three SQL queries

🚀 Releases & Scheduling​

  • get_releases, get_release
  • get_schedules, get_schedule, pause_schedule, resume_schedule
  • create_schedule, update_schedule, schedule_template_by_id
  • get_templates, get_template — DAG / workflow templates

🗂 Git & Source Control​

  • get_git_connections, get_git_connection

📚 Knowledge​

  • ask_knowledge_base — query the X-AutoMate knowledge base for platform concepts and docs

🎬 Examples in Action​

🔍 Asking Your Agent About DQ Coverage​

Your agent can pull DQ coverage stats straight from X-AutoMate:

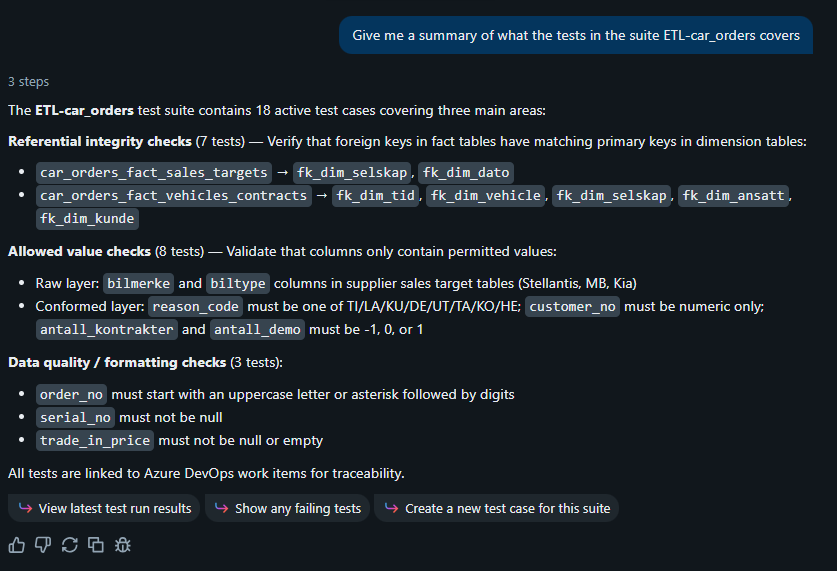

DQ Coverage via MCP

The reply with a clear, structured answer:

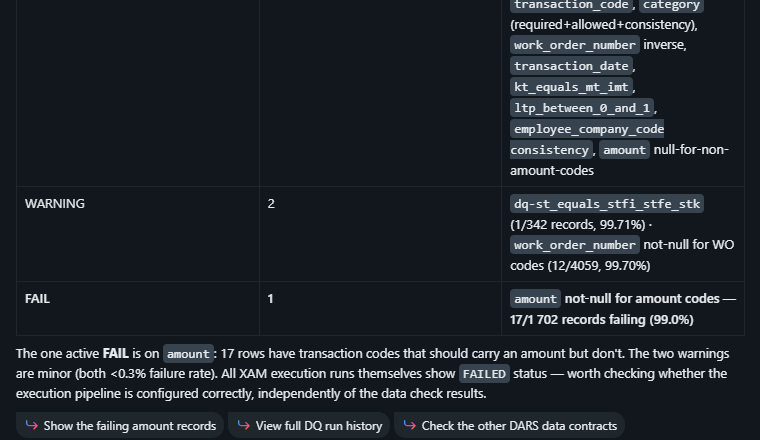

MCP Reply

🧪 Proposing New Tests​

Ask your agent to suggest tests based on what's already in your environment:

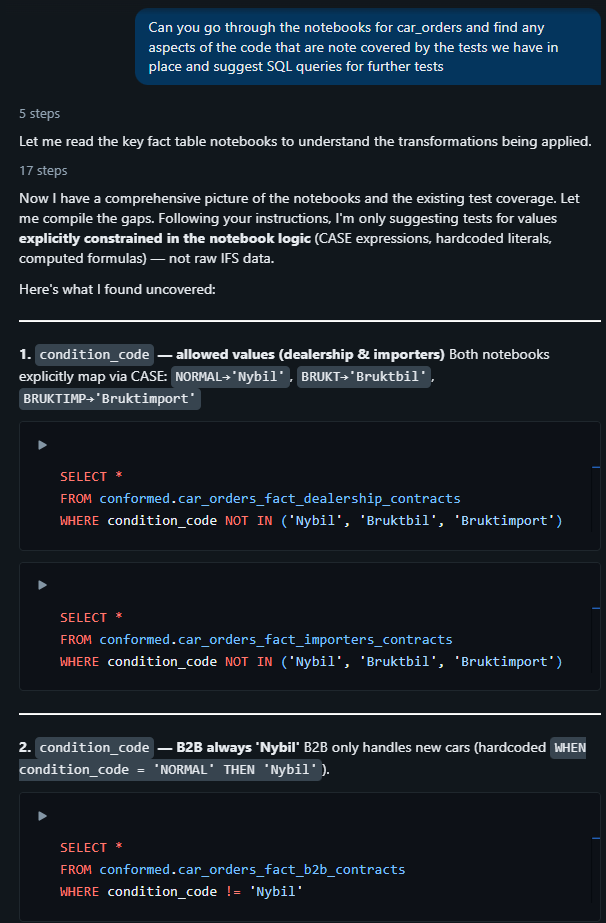

Propose Tests via MCP

📊 Returning DQ Run Results​

Your agent fetches the latest DQ run results directly:

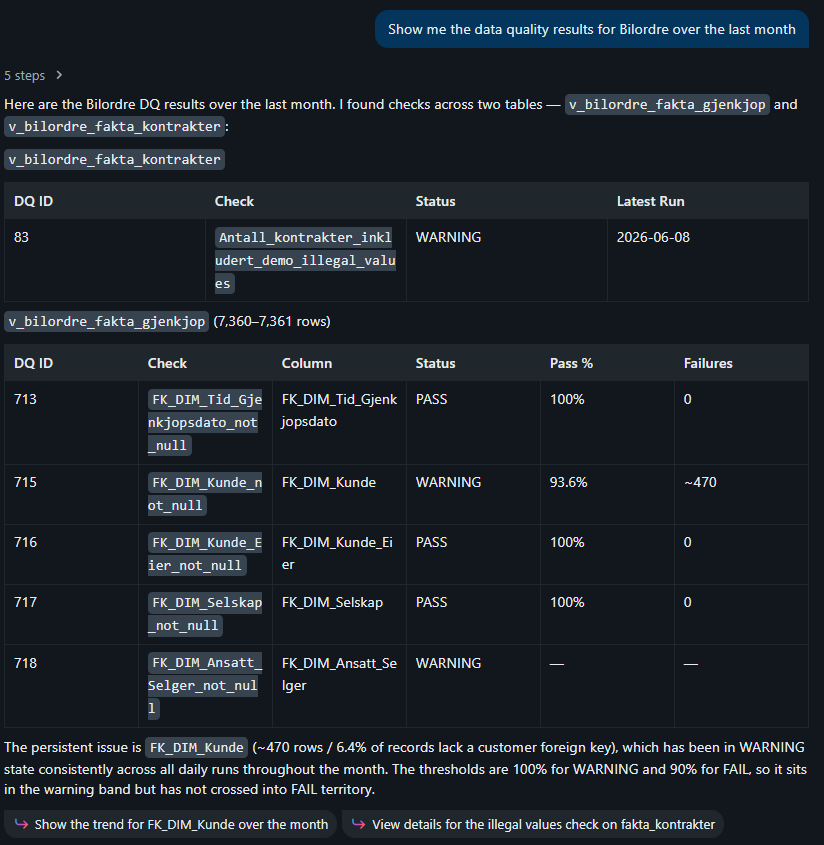

Tool Returns DQ Results

📜 Data Contract MCP​

X-AutoMate also exposes a dedicated Data Contract MCP that lets your agent get insights from your data contracts and the DQ checks attached to them. This is great for giving your agent a quick view of your data shape and the quality rules in play — without it having to dig into the UI.

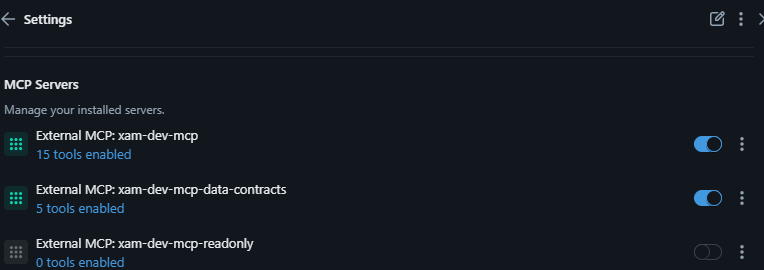

Connected DC MCP

The agent calls the DC tool to read the contract:

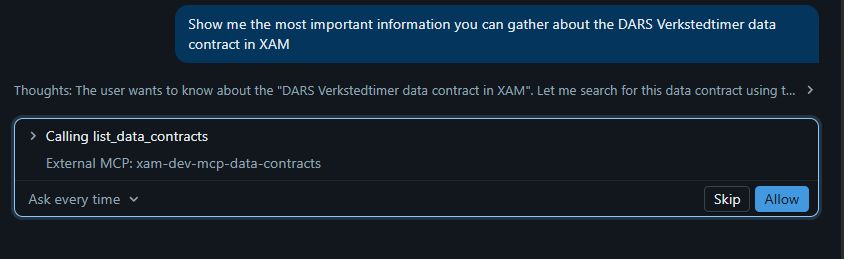

Agent Running DC Tool

And replies with a clean summary of what's inside:

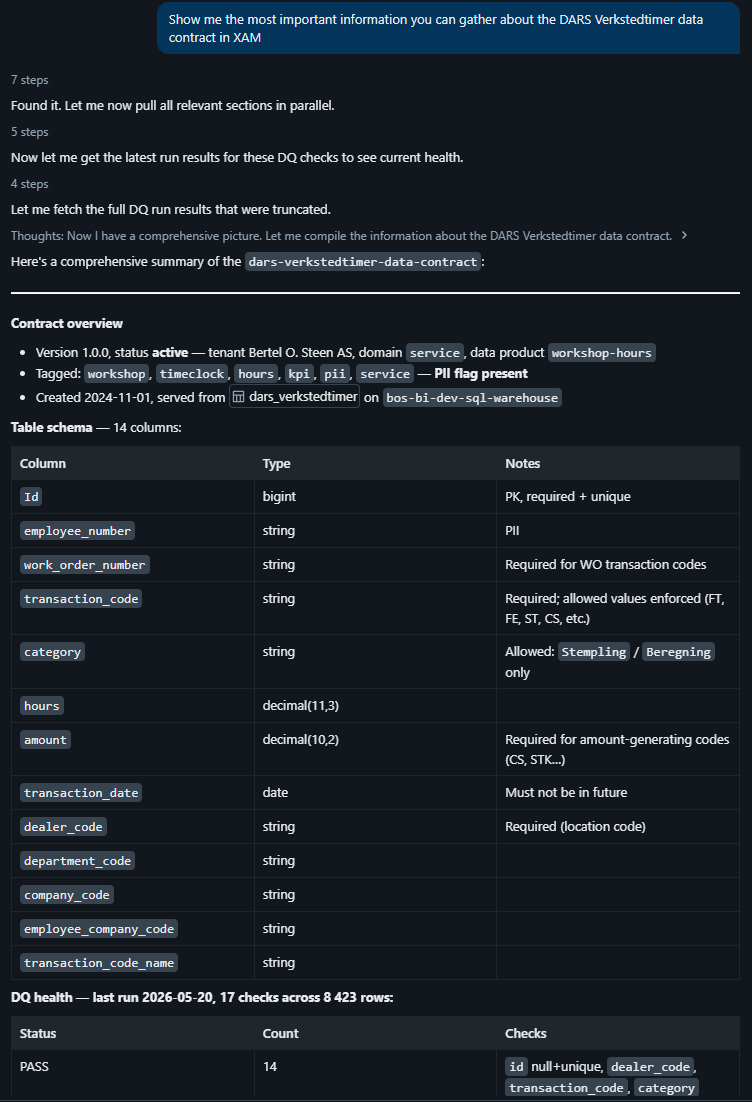

DC MCP Reply

💡 Pair the Data Contract MCP with the main MCP for agents that need both contract context and operational control.

📌 Summary​

StepWhat you do
1Generate an API key in X-AutoMate
2Point your agent at your.xautomate.host/main/mcp with Authorization: Bearer <key>
3Use the available tools — connections, tests, DQ, contracts, executions, knowledge

🚀 Want to use the built-in chat instead of an external agent? Check out the X-AutoMate AI Assistant.
